kr 7499,00

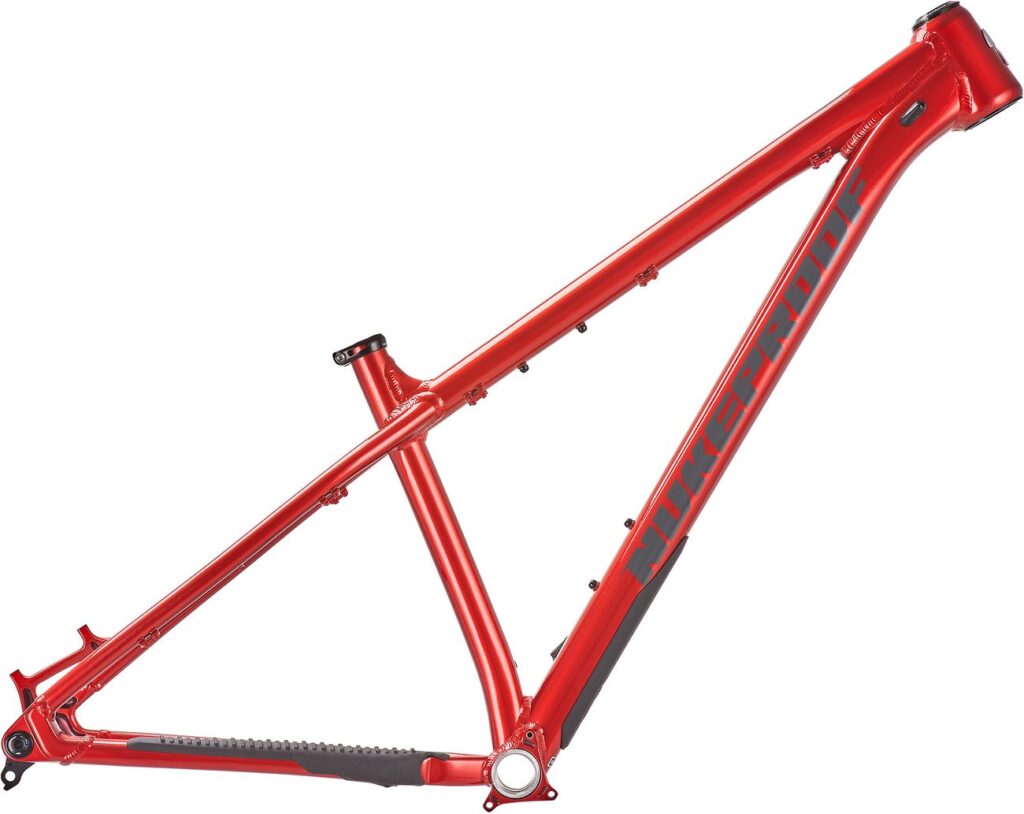

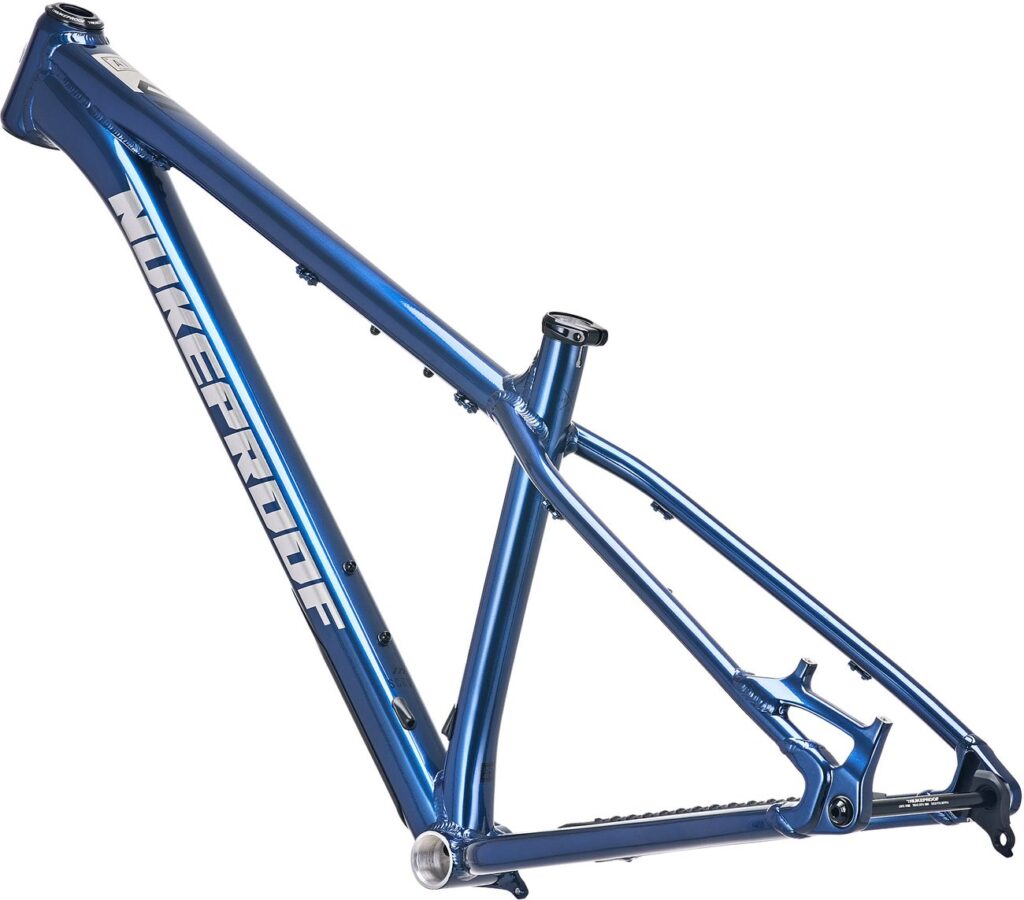

Aluminiums trailramme fra Nukeproof. Solid fundament for et heftig trail-bygg.
Nukeproof Scout rammesett gir deg et solid fundament for et heftig custombygg til en meget hyggelig pris. Solid aluminiumsramme for 140 mm gaffel, størrelsespesifikk tilpasset 27.5 eller 29-tommers hjul. Kompatibel med standard trail-komponenter og lett å tilpasse etter ønsket spesifikasjon. Bygg din drømmesykkel.
Her kan du konfigurere din egen custom Nukeproof Scout ramme.
|
SMALL – 275 |
MEDIUM – 275 |
MEDIUM – 290 |
LARGE – 290 |
X-LARGE – 290 |
XX-LARGE – 290 |
||
|

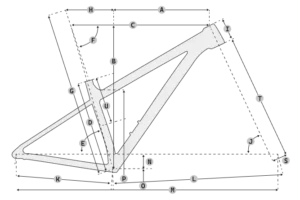

A |
Reach |
428,3 / 445.1 (SAGGED) |
446 / 462.7 (SAGGED) |
440,8 / 453.7 (SAGGED) |
458,3 / 470.1 (SAGGED) |
475,7 / 488.4 (SAGGED) |
493,1 / 510.1 (SAGGED) |
|
B |
Stack |
616,2 / 604.1 (SAGGED) |
625,4 / 613.1 (SAGGED) |
642,2 / 636.5 (SAGGED) |
651,2 / 645.4 (SAGGED) |
660,3 / 654.2 (SAGGED) |
669,3 / 665 (SAGGED) |
|
C |
Effective Top Tube Length |
605 / 600.5 (SAGGED) |
625 / 620.4 (SAGGED) |
624,7 / 620.1 (SAGGED) |
645 / 640.4 (SAGGED) |
665 / 660.3 (SAGGED) |
685 / 680.3 (SAGGED) |
|
D |
Seattube Length |
380 |
410 |
410 |
440 |
460 |
480 |
|
E |
Effective Seattube Angle |
74° / 75.54° (SAGGED) |
74° / 75.51° (SAGGED) |
74° / 75.54° (SAGGED) |
74° / 75.51° (SAGGED) |
74° / 75.48° (SAGGED) |
74° / 75.46° (SAGGED) |
|
F |
Seattube Angle (Actual) |
72° |
72° |
72° |
72° |
72° |
72° |
|
G |
Saddle Height at Saddle Offset |
650 |
700 |
700 |
750 |
800 |
850 |
|
H |
Saddle Offset at Saddle Height |
180 |
196 |
194 |
209 |
224 |
239 |
|
I |
Headtube Length |
110 |
120 |
100 |
110 |
120 |
130 |
|
J |
Headtube Angle |
64.5° / 66.08° (SAGGED) |
64.5° / 66.05° (SAGGED) |
64.5° / 66.04° (SAGGED) |
64.5° / 66.01° (SAGGED) |
64.5° / 65.98° (SAGGED) |
64.5° / 66.36° (SAGGED) |
|
K |
Chainstay Length |
422.5 |
425 |
432.5 |
435 |
437.5 |
440 |
|
L |
Front Centre |
741.1 |
762.7 |
763.5 |
785.2 |
806.8 |
828.4 |
|
M |
Wheelbase |
1158,9 / 1144.3 (SAGGED) |
1183,2 / 1168.6 (SAGGED) |
1187,1 / 1172.5 (SAGGED) |
1211,4 / 1196.7 (SAGGED) |
1235,6 / 1220.9 (SAGGED) |
1259,9 / 1245.5 (SAGGED) |
|
N |
(N) Bottom Bracket Drop |
-50 |
-50 |
-70 / -81.7 (SAGGED) |
-70 / -81.5 (SAGGED) |
-70 / -81.3 (SAGGED) |
-70 / -81.2 (SAGGED) |
|
O |
Bottom Bracket Height |
307 / 295.3 (SAGGED) |
307 / 295.2 (SAGGED) |
307 / 295.3 (SAGGED) |
307 / 295.2 (SAGGED) |
307 / 295.7 (SAGGED) |
307 / 295.8 (SAGGED) |
|
P |
Stand Over Height |
691.97mm |
707.63mm |
691.97mm |
707.63mm |
711.84mm |
715.84mm |
|
Q |
Fork Travel |
140 |
140 |
140 |
140 |
140 |
140 |
|
R |
Trail |
132.33 |
132.33 |
132.33 |
132.33 |
132.33 |
132.33 |
|
S |
Fork Offset |
42 |
42 |
42 |
42 |
42 |
42 |
|
T |
Axle to Crown |
551 / 516 (SAGGED) |
551 / 516 (SAGGED) |
551 / 516 (SAGGED) |
551 / 516 (SAGGED) |
551 / 516 (SAGGED) |
551 / 516 (SAGGED) |
|
U |
Maximum Seatpost Insert |
255 |
285 |
255 |
285 |
300 |
300 |
